12-bit A/D, 2,700 dpi.
High-speed scanning.
Autofocus.
"CleanImage™"
Nikon Color Management System.
Multi-sample scanning.
Hot swappable adapters.
Nikon Scan Ver. 2 Driver Software.
Nikon's "CleanImage™" adopts Digital ICE™ (Image Correction Enhancement) technology developed by Applied Science Fiction Inc. It only applies to color films.
Reading system/Optics
Film type 35mm [135]/IX240 film (Advanced Photo System™ film adapter optional) - (positive or negative, color or monochrome).
Reading resolution 2,592-pixel monochrome linear CCD 2,700 dpi.
Film adapter MA-20 SLIDE MOUNT ADAPTER - SA-20 STRIP FILM ADAPTER (2 to 6 frames)
IA-20 IX240 FILM ADAPTER (optional) - SF-200 SLIDE FEEDER (optional).
Scanning area 24.3 x 36.5mm (2,592 x 3,894 pixels).
Effective area 23.3 x 34.7mm (35mm strip) - 16.1 x 26.9mm (IX240).
Illumination method Condensed and diffused light.
Light source R, G, B, LED array.
Color separation RGB line sequential.
Imaging optics 6 lenses in 4 groups.
Autofocus Contrast detection by CCD- Focusing area selectable.
Manual focus.
Scanning/Signal processing
Image scanning .
Scan time Approx. 20 sec. at 2,700 dpi (typical scan time without data transfer to computer) The typical scan time with data transfer to computer and output time for display without "CleanImage™" (color negative/color positive) is 30 sec. .
Density range 35mm [135] strip film: 2 to 6 frames - IX240 film: 15/25/40 frames.
Thumbnail scanning 3.6.
Batch scanning Available with SA-20 STRIP FILM ADAPTER (up to 6 frames), optional IA-20 IX240 FILM ADAPTER (up to 40 frames) and optional SF-200 SLIDE FEEDER (up to 50 slides in 1.5mm-thick mounts).
A/D conversion 12 bits.
Output data User selectable (for color films only).
"CleanImage™" function 8 bits, 12 bits per color channel.
Multi-sample scanning User selectable.
Color Management System Built-in.
Data transfer
Panel indicators READY, BUSY and ERROR status indicated by LED.
Scanning software Nikon Scan Ver. 2.
Interface SCSI-II, SCAM supported.
SCSI connector D-sub 50 pins half pitch x 2.
SCSI ID switch Rotary switch.
Terminator Built-in active terminator, ON-OFF user selectable.
Image transfer Single-pass RGB line sequential.
Maximum transfer rate 4MB/sec.
Operating conditions
Power requirements 100 - 240VAC, 0.3A - 0.2A, 50/60Hz.
Environmental Temperature: 10 - 35°C (50 - 95°F).
Dimensions (W x D x H) 85.5 x 142 x 275mm (3.4 x 5.6 x 10.8 in.) Relative Humidity: 20 - 85% RH (non-condensing).
Weight Approx. 2.4kg (5.3lbs.).
MA-20 SLIDE MOUNT ADAPTER
Mount size Width: 49 x 50.8mm (1.9 x 2.0 in.)Thickness: 1.0 x 3.2mm (0.04 x 0.13 in.).

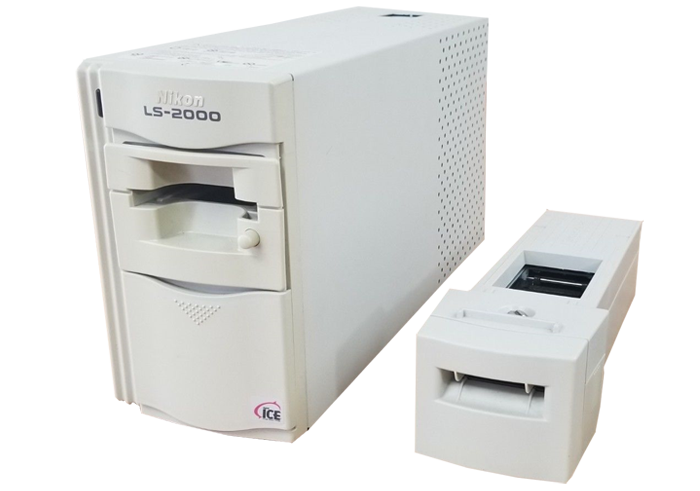

Dimensions (W x H x D) 85.5 x 142 x 275 mm (3.4 x 5.6 x 10.8 in.) with LS-2000.
SA-20 STRIP FILM ADAPTER
Strip type 35mm [135] strip film with 2 to 6 frames (use of one frame requires FH-2 STRIP FILM HOLDER).
Loading method Automatic loadingBare strip film loaded automatically.
Dimensions (W x H x D) 85.5 x 142 x 325 mm (3.4 x 5.6 x 12.8 in.) with LS-2000.
IA-20 IX240 FILM ADAPTER (Optional)
Film type IX240 (Advanced Photo System™) film.
Loading method Automatic loading.
Thumbnail scan time Approx. 80 sec. (25 frames).
Dimensions (W x H x D) 85.5 x 142 x 325 mm (3.4 x 5.6 x 12.8 in.) with LS-2000.
SF-200 SLIDE FEEDER (Optional)
No. of slides 50 slides in 1.5mm-thick mounts.
Loading method Automatic loading.
Feed time Approx. 6 sec.
Eject time Approx. 6 sec.
Dimensions (W x H x D) 142 x 85.5 x 440 mm (5.6 x 3.4 x 17.3 in.) with LS-2000.
